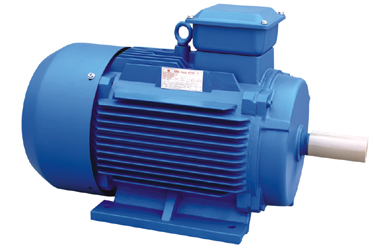

Y2 Series motors are totally enclosed fan cooled (TEFC). squirrel cage three-phase induction motors, developed with new technique They are renewal and upgrading products of Y series The mounting dimension is fully comformed with IEC standard .
The motors have the merits of beautiful modeling, compact structure, low noise, high efficiency, large starting torque, easy serving, etc The motors are adopted with Fclass insulation and designed with assessing method for insulation practice, it enhances greatly motor's safety and reliability. These motors have reached an international advandced level of 1990s Y2 series motors can be widely used in various machines and equipments, such as drilling machines, blowers, pumps, compressors, transporters, agricultural and foot processing machines |
| |
 |
Operating Conditions
Ambient temperature:-15040
Altitude: Not exceeding 1000 meters
Rated voltage: 380V5%
Rated frequency: 50HZ/60HZ
Connection: Y Start-Connection for 3kw and below
Date-Connection lor 3kw or more
Duty/Rating: Continuous (S1)
Insulation class:Class B/Class F
Protection class:The mam body of the motor IP54
The terminal box IP55
Cooling type:IC0141 |
|
